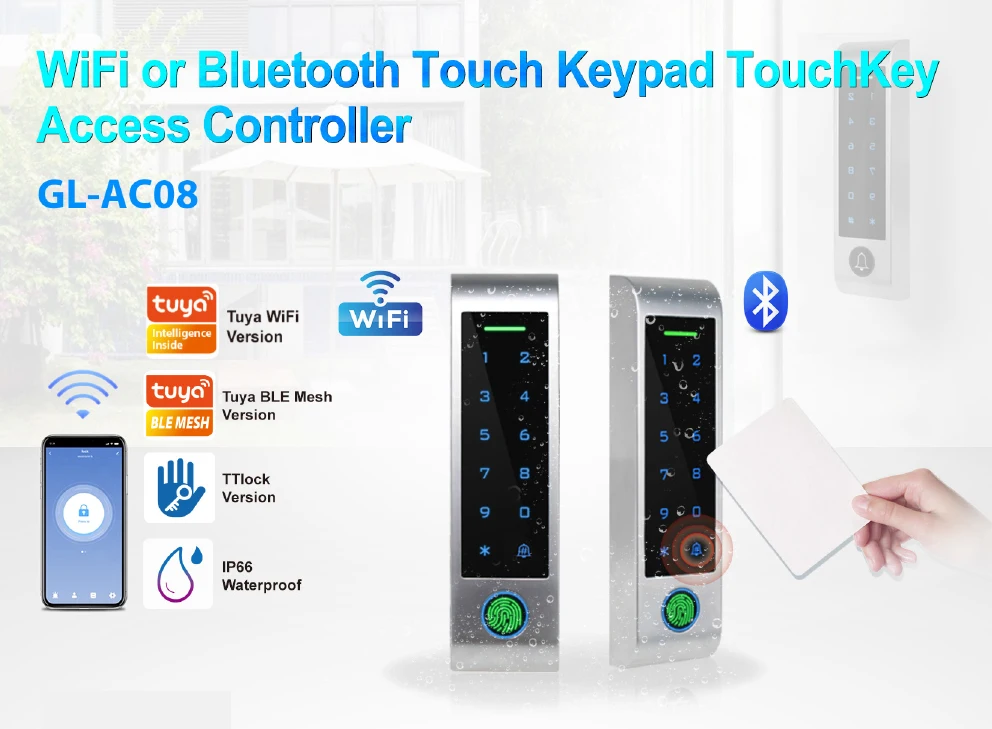

WIFI Tuya Smart Security Door Lock Biometric Fingerprint Access Control Reader with Metal Keypad IP66 Waterproof

Name: WIFI Tuya Smart Security Door Lock Biometric Fingerprint Access Control Reader with Metal Keypad IP66 Waterproof
Brand: VANSHUI
Price: 1 USD

China WIFI Tuya Smart Security Door Lock Biometric Fingerprint Access Control Reader with Metal Keypad IP66 Waterproof wholesale

Brand Name : VANSHUI

Model Number : GL-AC08

Certification : CE,FCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000Pcs/month

Packaging Details : Unit Pacakge:15.6*7.6*6.6cm,G.W.:0.615kg Carton Package:47*30*18.2cm,G.W.12.5kg,20units/CTN

Delivery Time : sample order within 3-4days.

Recognition Type : Fingerprint+APP+Passord+RFID Card

Product name : Biometric Smart Access Control Reader

User Capacity : 1000 users (988 common users + 2 panic users +10 visitor users)

Waterproof : IP66

PIN Length : 4~6 digits

Proximity Card Reader : 125KHz(ID carfd) or 13.56MHz(IC card)

Relay : One (NO, NC, Common)

Operating Temperature : -30°C ~ 60°C

Contact Now

WIFI Tuya Smart Security Door Lock Biometric Fingerprint Access Control Reader

with Metal Keypad IP66 Waterproof

PRODUCT DESCRIPTION


WIFI Tuya Smart Security Door Lock
Biometric Fingerprint Access Control Reader
with Metal Keypad IP66 Waterproof

FEATURES

Outdoor Touch Keypad & Reader
1/Metal housing,anti-vandal,waterproof,conforms to IP66
  2/Card type:EM Card or IC Card
  3/lOS and Android available
  4/Add/Delete users by APP
  5/Support checking Opening Record
  6/Multiple Access Modes:Smartphone,Fingerprint,Card,PIN
  7/Support Gateway(Bluetooth)
  8/Can set Time Restriction for users(WiFi)
  9/Temporary Password (One-time Or Period Code)(WiFi)
  10/Remotely Access(Support 3G/4G/5G)(WiFi)
  11/Doorbell Call Notice(WiFi)

SPECIFICATION

Model	GL-AC08
User Capacity	TUYA WIFI: Hardware User:1,000,APP User:500; TTLOCK BT:Hardware User:1,000,APP User:100(including 255 card/PIN users); Common User:988 (100 Fingerprint Users+888 PIN/Card Users),Visitor User:10,Panic User:2
APP option	Tuya (WIFI or BT) or TTLock APP
PIN Length	4~6 digits
Operating Voltage	12~28V AC/DC
Idle Current	≤ 60mA
Active Current	≤ 150mA
Proximity Card Reader	EM or Mifare
Radio Technology	125KHz or 13.56MHz
Read Range	2~6cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay	One (NO, NC, Common)
Adjustable Relay Output Time	0~99 Seconds (5 seconds default)
Lock Output Load	2 Amp Maximum
Wiegand Interface	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output	4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment	IP66
Operating Temperature	-30°℃～60℃ (-22°F～140°F)
Operating Humidity	0%RH ~ 98%RH
Physical	Zinc-Alloy
Color	Sliver & Black
Dimensions	L165x W44 x H22 (mm)
Weight	Unit Weight:1KG;Shipping Weight:1.5KG

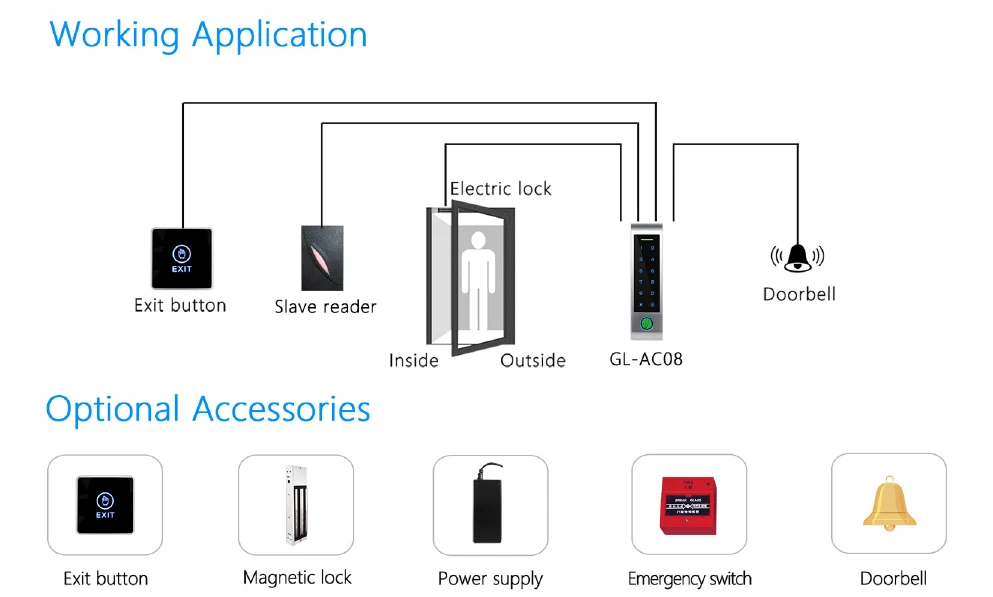

DIAGRAM

DETAILS

PRODUCTS PACKAGE

APP INTRODUCTION

TUYA APP INTRUCTION

TTLOCK APP INTRUCTION
